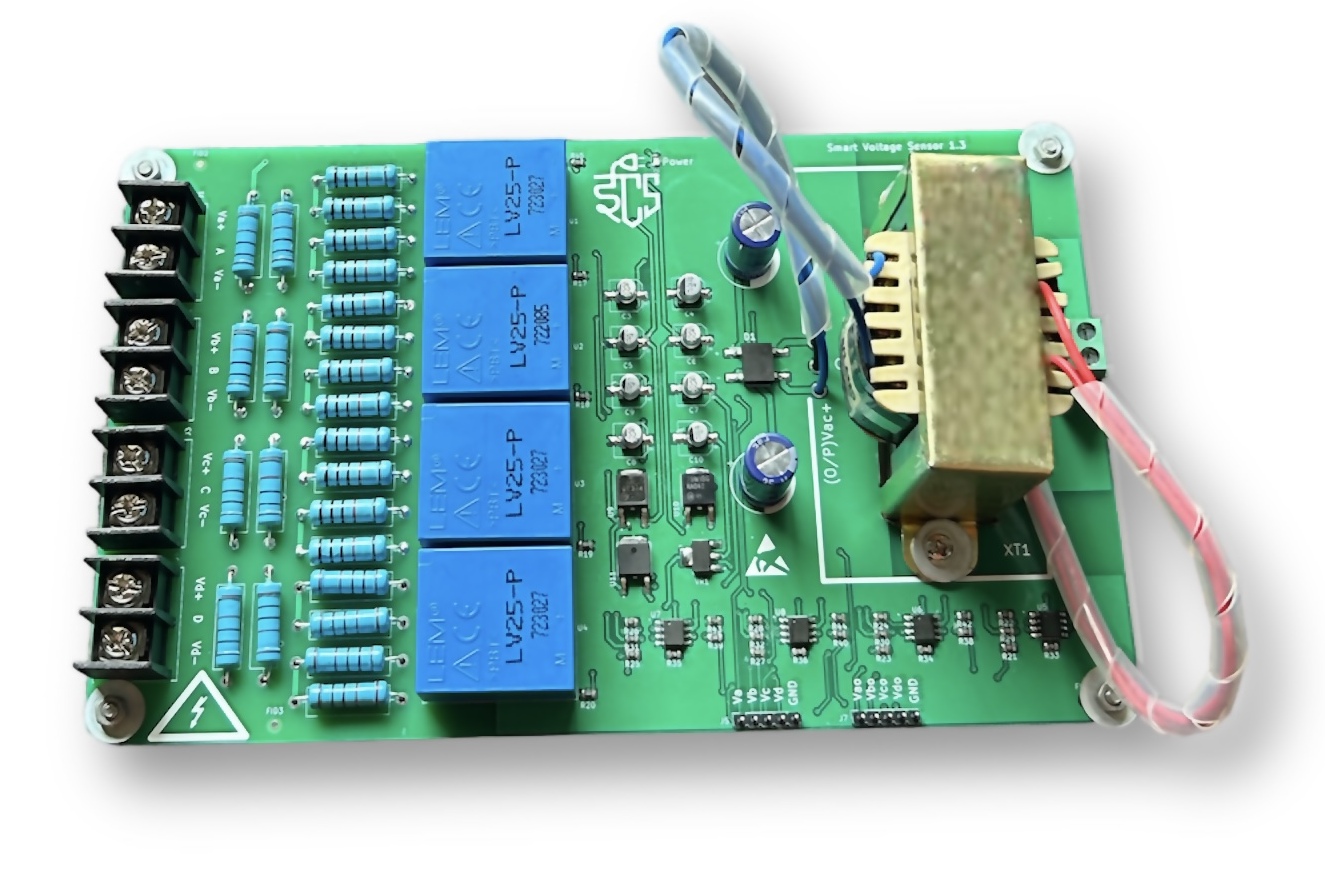

SCS-SB-0400 is our standard maximum 4 channel LEM based voltage sensors board that is suitable for all your accurate voltage sensing needs in different power converters. With on board isolated supply, it ensures safety and provides excellent linearity. This board can also be provided with less than four numbers of voltage sensors as per requirements and modified sensors board can also be developed for large quantities.

Overview:

AC/DC universal voltage sensors board.
Both uni-polar as well bi-polar sensors output available.
On board isolated power supplies.
Requires 1ph, 230Vac supply for operation, max current consumption <100mA.
Suitable connectors for easy input and output connection.
Led indication for power on.
Thermal and noise optimized PCB design.

Applications:

Our standard voltage sensors board is generalized and can be used for any application whether AC or DC voltage sensing and have frequency bandwidth of 200kHZ, some of the targeted applications are,

Power Converters

Electrical Drives

Laboratory R&D purposes

SMPS

Testing purposes
