High Speed Half Bridge Gate Driver

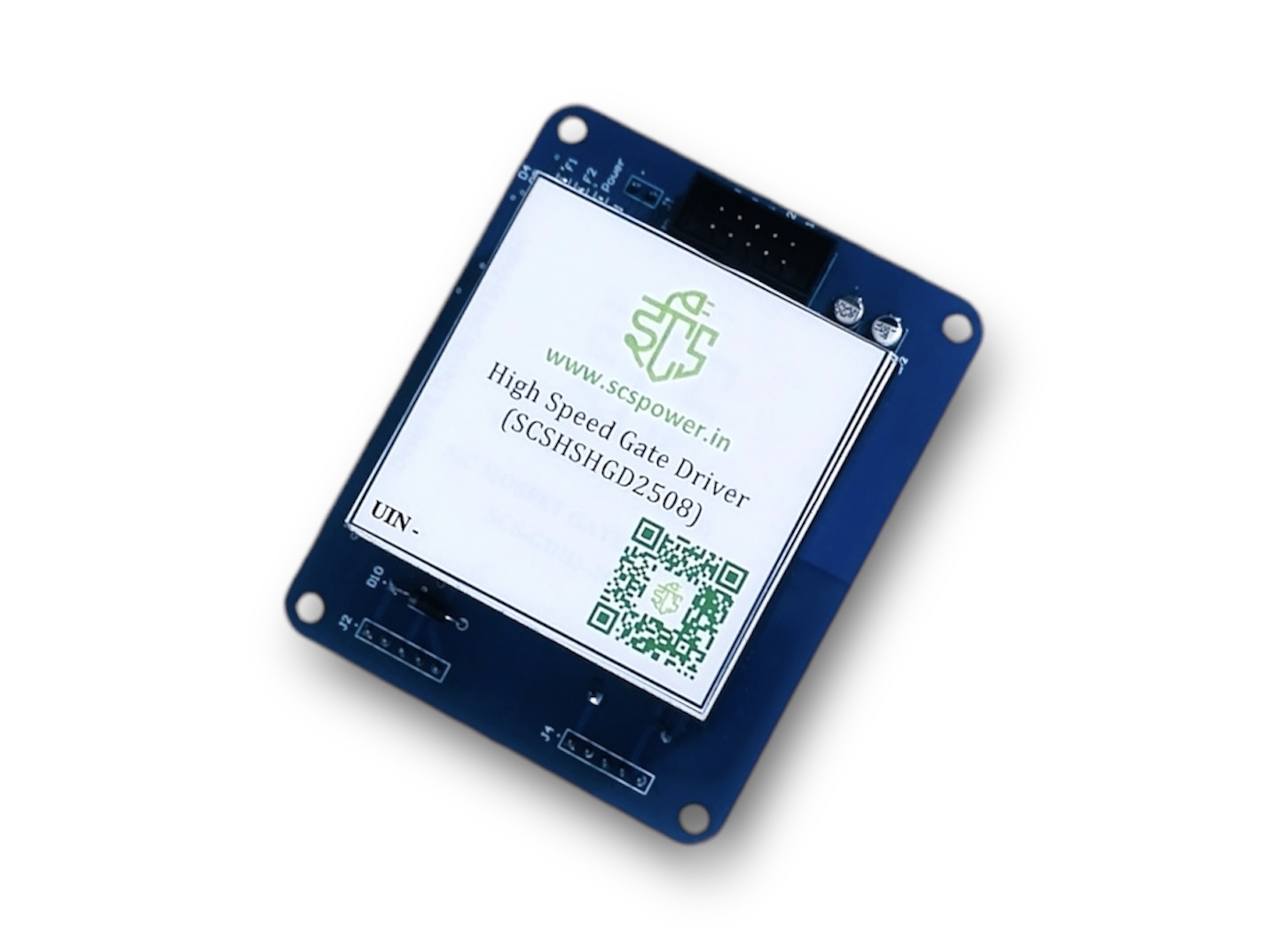

SCSHSHGD2508 is a compact yet powerful half bridge (two output channels) gate driver for all types of power semiconductor switches (Si, SiC & GaN) and can work up to 250 kHz switching frequency, preferable for new generation SiC and GaN power switches for high speed operation.
It has several protection features with on board isolated supplies that ensure reliability and efficient switching performance.

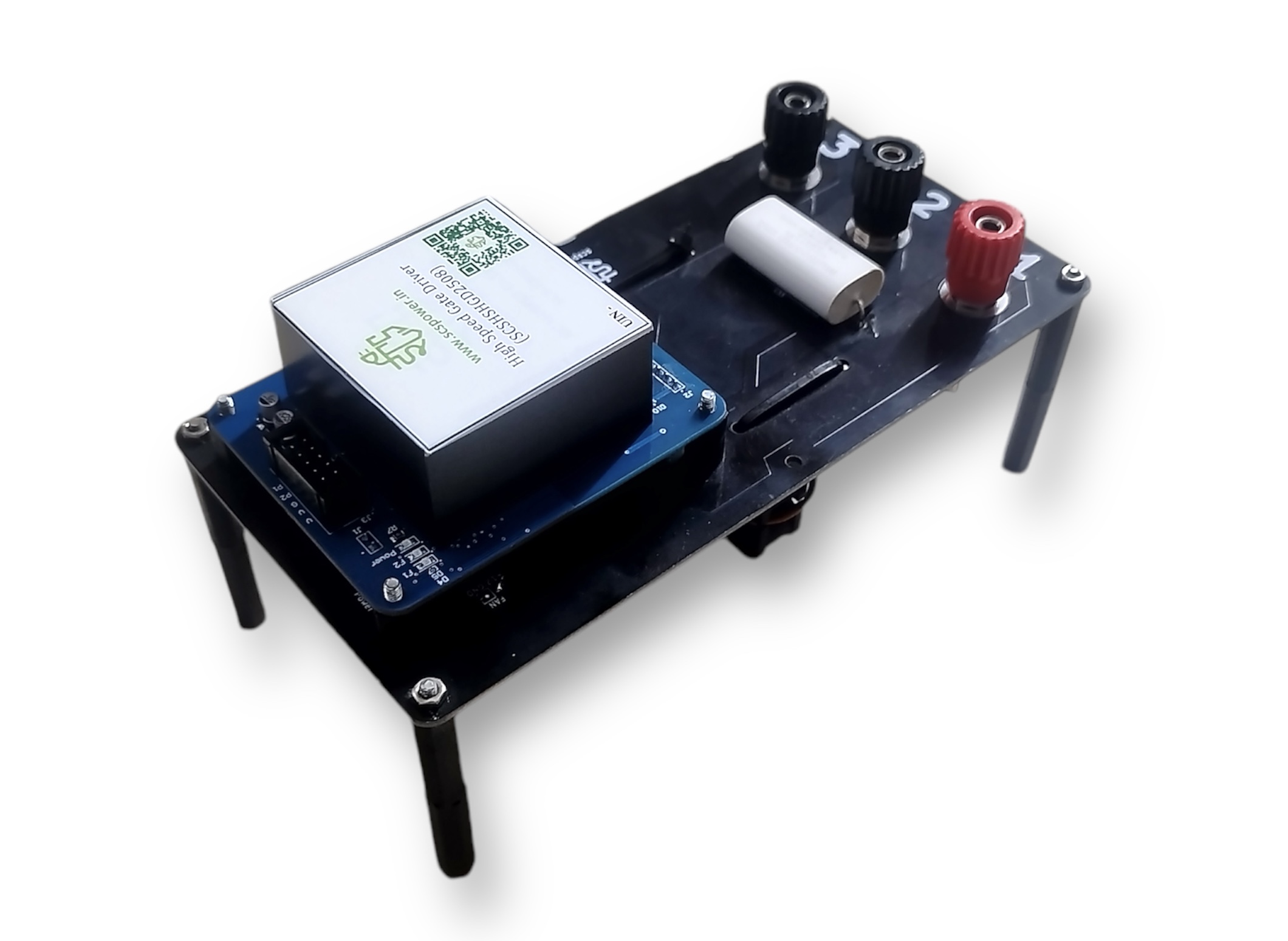

Compatible and easy to use with our half bridge switch power modules.
Overview:
- Up to 250 kHz switching frequency
- Standard +15/-5 volts drive (can be provided with other preferable options)
- Direct 3.3v and 5v pulse support, no need of additional interfacing circuit
- 8A peak current drive capability
- On board isolated supplies
- Half-bridge drive with inbuilt dead band option available
- Buffered inputs for low noise
- Under voltage lock out protection
- Short-circuit protection using VCESAT and Fault feedback
- Up to 1000 volts DC link support
- Power and fault indication LED
- Dimension: 80mm × 65mm
Applications:
This gate driver is suitable for any application for switching frequency up to 250kHz. Some of targeted applications are:
Motor & traction drives
PFC converters
DAB converters
Multi-level converters
Industrial automation & testing
