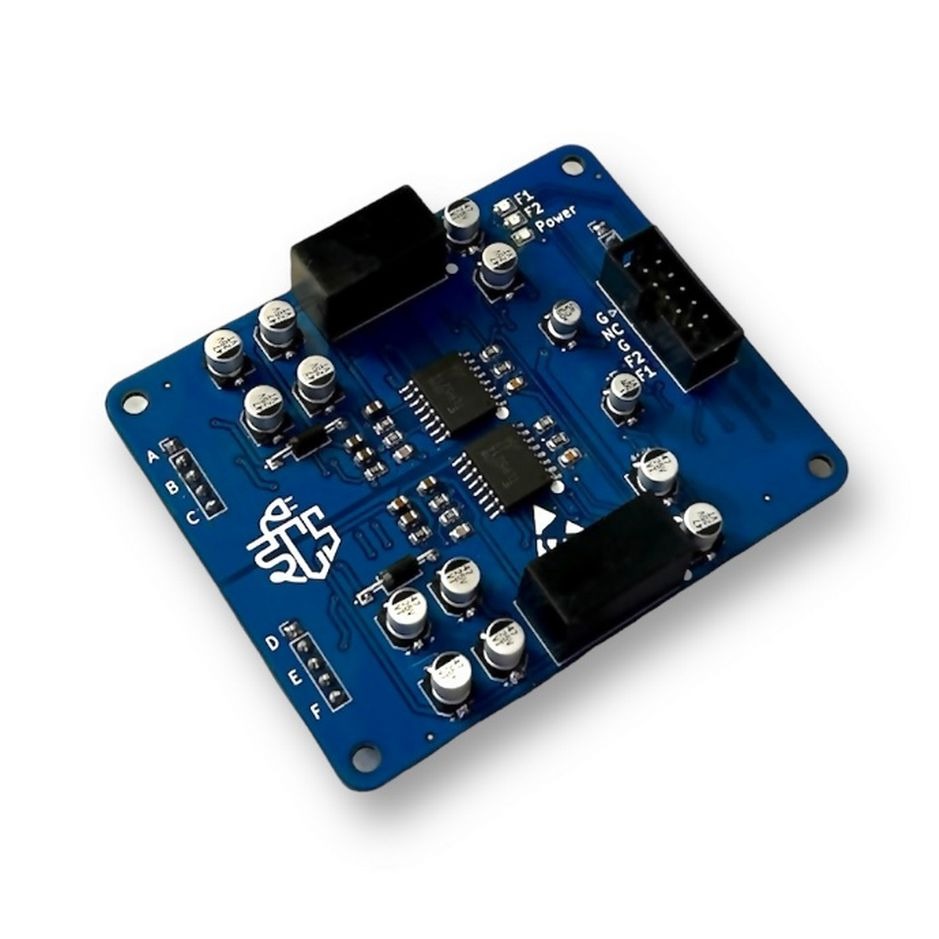

Half bridge Gate Driver
Our SCS-GDHX-8004 is a compact yet powerful half bridge (two channels) gate driver for all your power electronics needs; both channels have several protection features with on board isolated supplies that ensure reliability and efficient performance.
Overview:
- Available for IGBT, MOSFET and SiC MOSFET switches with suitable negative voltage drive.
- Separate pulse inputs for two switches.
- 3.3 volts and 5 volts pulse support, directly compatible with controller no need of additional interface circuits.
- Up to 80 kHz switching frequency.
- Inbuilt deadband, shoot through and short circuit protection for both switches.
- Fault output.
- Buffered inputs for low noise.
- Under voltage protection.
- Power and fault indication LED.
- Dimension: 80mm × 65mm
Applications:
Our advanced gate drivers able to drive any power device upto 80kHz switching frequency efficiently, some of targeted applications are,
Motor & traction drives
PFC converters
DAB converters
Multi-level converters
Industrial automation & testing
